Multi-token Residual Prediction
A lightweight module that predicts the residual between denoising steps of a diffusion LM: up to 1.56× lossless speedup in static decoding and up to +16 accuracy points recovered in dynamic decoding.
Editor’s Note: this guest blog post describes the results of a research collaboration between Modal Research and NYU Shanghai’s HeavyBall Research. It first appeared on the Modal blog.
TL;DR
Multi-Token Prediction (MTP) speeds up autoregressive models by predicting several tokens from a single forward pass. We adapt this to diffusion language models by training a module to predict the residual between denoising steps rather than full distributions. This lightweight module enables both lossless speedup during static decoding (up to 1.56×) and quality recovery in dynamic decoding (up to +16 accuracy points).
Paper: https://arxiv.org/abs/2605.18817
Code: https://github.com/heavyball-research/multi-token-residual-prediction
SGLang implementation: https://github.com/heavyball-research/sglang
Models: https://huggingface.co/collections/heavyball/sdar-mrp
Starting from MTP
Autoregressive models generate one token per forward pass, and that’s expensive. Lightweight prediction heads like Medusa, EAGLE, and DeepSeek’s MTP predict multiple tokens from hidden states, combined with speculative verification to accelerate decoding.
We asked whether this approach could work beyond autoregressive models. Diffusion LMs start from masked sequences and gradually unmask high-confidence positions — building in parallelism but creating a tradeoff: unmask too many tokens per step and quality degrades since tokens lack context from others being revealed simultaneously. Most acceleration research operates on this single quality-speed curve.
A naïve attempt
The direct approach: train a small head to predict the next step’s full log-density from current hidden states, then apply it multiple times. Accuracy declined sharply as the number of prediction steps increased:
| Method | K=1 | K=2 | K=3 | K=4 |
|---|---|---|---|---|
| Naïve MTP | 84.8 | 16.9 | 5.9 | 1.9 |
GSM8K (0-shot, CoT) accuracy on SDAR-4B. Per-step errors compounded, sharply reducing accuracy beyond step one.
The main insight
If the full next-step distribution is hard to predict across multiple steps, the question is whether there is an easier target to predict instead. The backbone’s output changes only slightly between adjacent denoising steps. Rather than predicting complete distributions from scratch, predict small corrections to already-good predictions.
The motivation is that nearby denoising steps often change only a few positions. Under a Lipschitz smoothness assumption, changes in the input bound changes in the predictions at untouched positions. This motivates learning residual corrections rather than complete distributions.
Multi-token Residual Prediction (MRP)

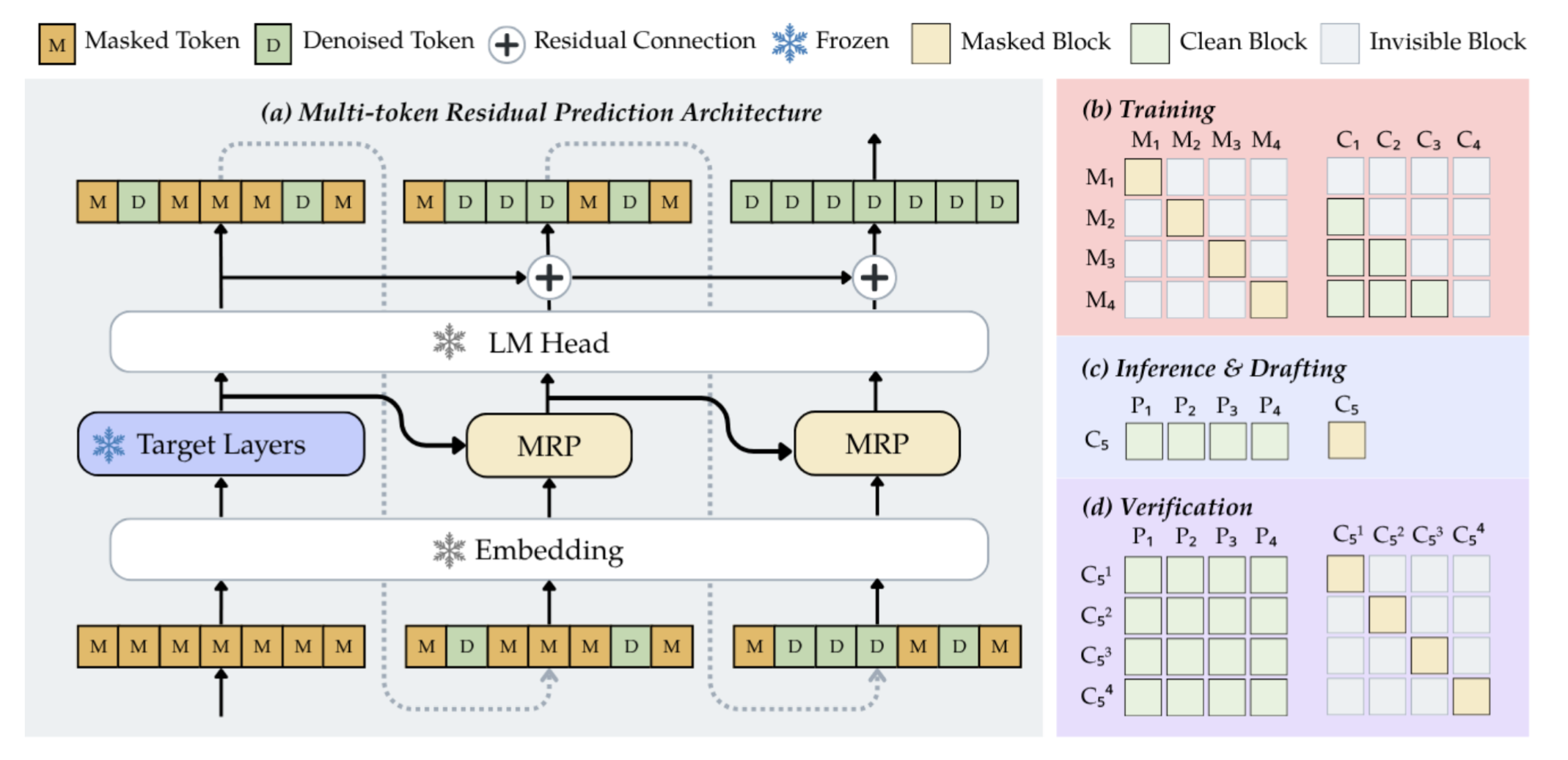

A small 3-layer transformer reads the frozen backbone’s hidden states, predicts inter-step logit residuals, and adds them to the backbone’s logits. Only the MRP module trains; the backbone, language head, and embeddings remain frozen.
The training objective uses KL divergence on masked positions, comparing the backbone’s output before and after revealing tokens. Because softmax normalizing constants cancel, this matches true conditional distributions while the module only represents the correction.
| Method | K=1 | K=2 | K=3 | K=4 |
|---|---|---|---|---|
| Naïve MTP | 84.8 | 16.9 | 5.9 | 1.9 |
| MRP | 88.6 | 84.9 | 70.9 | 57.2 |
GSM8K (0-shot, CoT) accuracy on SDAR-4B. Residual prediction improves multi-step accuracy in this experiment. At K = 2, residual learning leads by 65+ points.
Applications in inference
DLMs typically run in two regimes: static denoising unmasks fixed numbers of positions per step (high quality, low throughput), and dynamic denoising unmasks all positions exceeding a confidence threshold (high throughput, lower quality). MRP serves both, playing different roles in each.
Application I: Lossless speedup in static denoising
MRP supports multiple operating points. In speculative decoding, MRP proposes tokens and the backbone verifies them in one pass. Positions where the backbone agrees with the draft are accepted; positions where it disagrees are remasked and recomputed. Verification hidden states seed the next iteration, amortizing costs when acceptance rates are high.
| Backbone | GSM8K | MATH500 | HumanEval | MBPP |
|---|---|---|---|---|
| SDAR-4B | 90.0 / 1.36x | 68.0 / 1.26x | 67.7 / 1.35x | 66.5 / 1.27x |
| SDAR-8B | 90.4 / 1.40x | 74.8 / 1.39x | 72.6 / 1.34x | 67.3 / 1.34x |
Speculative mode in SGLang. Accuracy (%) followed by throughput speedup. Quality matches the backbone by construction.
In direct decoding, verification is skipped and MRP’s corrected logits are used directly. This increases throughput, with smaller accuracy losses on the evaluated reasoning tasks than on the code tasks:
| Setting | GSM8K | MATH500 | HumanEval | MBPP |
|---|---|---|---|---|
| Baseline | 90.9 / 1x | 72.2 / 1x | 73.8 / 1x | 67.7 / 1x |
| Direct (MRP Step 1) | 90.1 / 1.59x | 71.4 / 1.61x | 67.1 / 1.53x | 63.8 / 1.51x |
| Direct (MRP Step 2) | 89.2 / 1.89x | 70.8 / 1.91x | 64.0 / 1.78x | 59.9 / 1.75x |
Direct decoding on SDAR-8B. Accuracy (%) followed by throughput speedup. Tokens commit without verification. K=1 stays within a point on reasoning at 1.6×; K=2 exceeds 1.8× with larger code-task drops.
Users choose the operating point based on task requirements. Using these options requires access to the inference configuration; hosted APIs may not expose them.
Application II: Quality recovery
In aggressive low-threshold dynamic decoding, the backbone over-commits many tokens per step. Each token is chosen before seeing others revealed simultaneously, causing quality loss.
Here MRP reverses direction: after backbone over-reveals, a single MRP pass predicts residuals conditioned on fresh reveals. Any token whose confidence now falls below the threshold is remasked and deferred to a later step with more context. MRP reads how predictions shift once new neighbors are accounted for, identifying over-confident isolated reveals. The same threshold τ gates both the reveal and the remask, so no additional tuning is introduced.
Prior work like DMax, RCD, and WINO revisit reveals and remask low-confidence tokens, but spend full backbone passes re-evaluating. MRP performs the same check via a single lightweight residual pass.
| Model | τ | GSM8K | MATH500 | HumanEval | MBPP |
|---|---|---|---|---|---|
| 1.7B | 0.5 | 41.6 → 59.1 (+17.5) | 26.0 → 37.4 (+11.4) | 17.7 → 28.7 (+11.0) | 26.9 → 41.3 (+14.4) |
| 1.7B | 0.6 | 56.3 → 67.0 (+10.7) | 33.4 → 40.4 (+7.0) | 31.7 → 43.3 (+11.6) | 42.4 → 49.0 (+6.6) |
| 1.7B | 0.7 | 65.4 → 71.8 (+6.4) | 39.4 → 48.6 (+9.2) | 40.9 → 45.1 (+4.2) | 49.8 → 51.0 (+1.2) |
| 1.7B | 0.8 | 70.6 → 75.4 (+4.8) | 47.4 → 52.0 (+4.6) | 45.7 → 48.8 (+3.1) | 51.8 → 51.8 (0.0) |
| 1.7B | 0.9 | 76.2 → 77.3 (+1.1) | 51.2 → 57.0 (+5.8) | 49.4 → 52.4 (+3.0) | 53.7 → 54.1 (+0.4) |
| 4B | 0.5 | 63.4 → 81.1 (+17.7) | 44.2 → 58.4 (+14.2) | 32.3 → 53.1 (+20.8) | 38.5 → 50.6 (+12.1) |
| 4B | 0.6 | 76.4 → 85.5 (+9.1) | 53.6 → 61.4 (+7.8) | 49.4 → 57.9 (+8.5) | 49.8 → 57.2 (+7.4) |
| 4B | 0.7 | 84.6 → 88.5 (+3.9) | 60.4 → 65.6 (+5.2) | 60.4 → 62.2 (+1.8) | 61.1 → 63.4 (+2.3) |
| 4B | 0.8 | 87.9 → 90.1 (+2.2) | 66.8 → 70.6 (+3.8) | 64.6 → 62.8 (−1.8) | 63.8 → 64.2 (+0.4) |
| 4B | 0.9 | 88.5 → 90.1 (+1.6) | 69.0 → 70.6 (+1.6) | 67.1 → 65.9 (−1.2) | 65.4 → 64.6 (−0.8) |
| 8B | 0.5 | 67.9 → 82.3 (+14.4) | 45.2 → 58.0 (+12.8) | 32.3 → 54.9 (+22.6) | 34.6 → 49.4 (+14.8) |
| 8B | 0.6 | 79.6 → 86.8 (+7.2) | 54.8 → 63.8 (+9.0) | 48.8 → 63.4 (+14.6) | 48.3 → 59.9 (+11.6) |
| 8B | 0.7 | 85.9 → 89.0 (+3.1) | 60.8 → 69.0 (+8.2) | 64.6 → 72.6 (+8.0) | 54.9 → 60.3 (+5.4) |
| 8B | 0.8 | 89.3 → 91.0 (+1.7) | 68.0 → 70.2 (+2.2) | 74.4 → 75.0 (+0.6) | 62.3 → 66.5 (+4.2) |
| 8B | 0.9 | 90.8 → 91.4 (+0.6) | 70.0 → 72.0 (+2.0) | 75.0 → 75.0 (0.0) | 66.9 → 68.5 (+1.6) |
MRP remasking improves accuracy of low-threshold dynamic decoding. Gains peak at aggressive thresholds (up to +22.6 on 8B HumanEval at τ = 0.5) and shrink as τ rises and the backbone already unmasks conservatively. Reasoning improves at every operating point.
What we learned
Several insights emerged:
-
Depth has a sweet spot at 2–3 layers. Accuracy improves steadily from 1 to 3 layers, then plateaus while throughput keeps dropping. By 8 layers the tradeoff is strictly worse. Other speculative modules like DFlash go deeper (around 5 layers) using per-layer KV injection feeding hidden states into every draft layer, enabling greater benefit from additional depth.
-
The best depth depends on the mode. In direct decoding, where MRP outputs are used directly, deeper modules help more. In speculative decoding, verification corrects MRP’s mistakes anyway, so a shallower and faster module reaches the same final quality at higher throughput.
-
One module supports two decoding modes. MRP predicts the change in the backbone’s output between denoising steps. The same residual predictor can propose tokens for speculative verification or identify tokens to remask.
For diffusion LMs, MRP offers several ways to balance throughput and accuracy: speculative verification in static decoding, direct prediction with an accuracy tradeoff, and remasking to recover accuracy in dynamic decoding.
